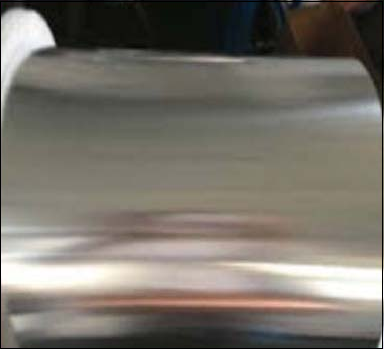

Aluminum (Al) Foil for Cathode Battery Materials
|
Aluminum foil is used as a substrate for coating cathode materials in Li-ion battery. The thickness of this aluminum foil is from 0.01 mm to 0.15 mm.
Specifications:
| Application | Lithium-Ion Battery | Polymer Battery | ||
| Alloy | 1145, 1235, 1235A, 1060, 8150, 1070, 1085 | 1235A, 8521, 8150, 1060 | ||
| Temper | H18 | 0, H22, H18 | ||
| Thickness | 0.01 – 0.02 mm | 0.012 – 0.06 mm | ||
| Mechanical Performance | U.T.S | ≥ 40 Mpa | ≥ 40 – 150 Mpa | |
| Elongation | ≥ 1 % | ≥ 1% | ||
| Core (ID) | 76.2 mm | 76.2 mm | ||
| Wettability | ≥ B Grade | ≥ B Grade | ||
